Technical characteristics

Frame Range

H112~160

Power Range

1.8~7.5kW

Rated Voltage

380V(Special voltage customization)

Rated Frequency

50Hz(Special frequency customization)

Poles

4、6

Protection Degree

IP54

Cooling ModeIC411Insulation ClassF
Operation ModeS1Installation ModeB3
Wiring ModeY/?

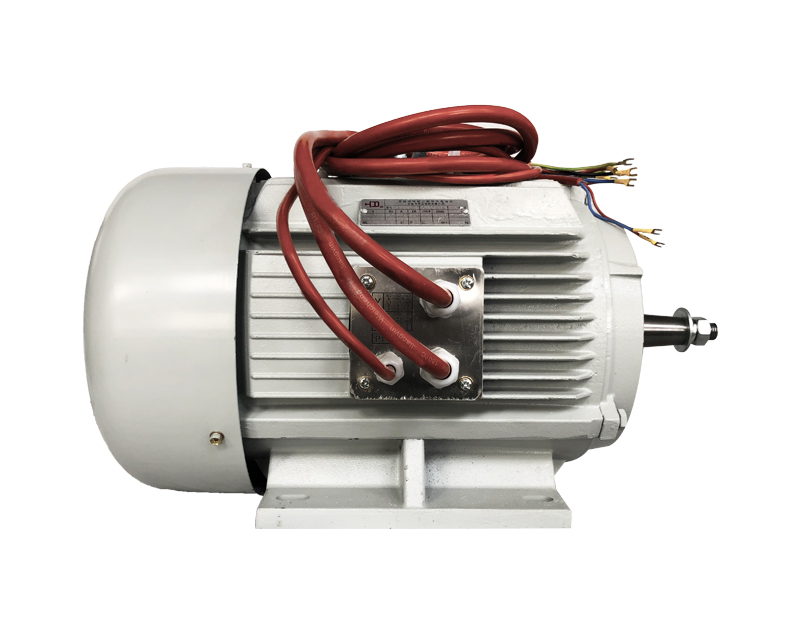

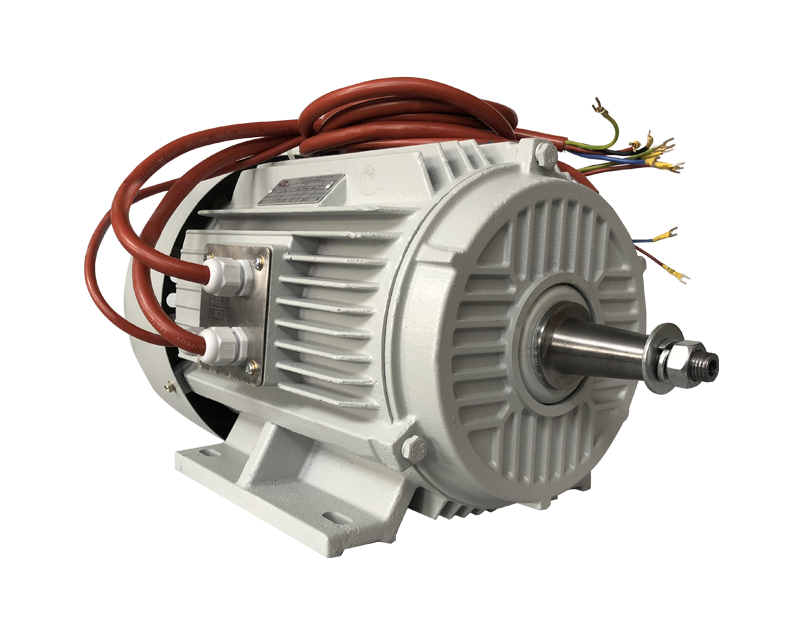

FQ series high starting torque three-phase asynchronous motor

This series of motors are closed self fan cooled squirrel cage three-phase asynchronous motors. It has extremely high starting torque and good low-frequency operation characteristics. It is especially suitable for occasions with impact load. In this case, it is more energy-saving than ordinary motors. This series of motor is the main motor for water jet loom. It has no junction box and adopts outlet board. It can also be used in occasions similar to the above situation. Delta connection is adopted when the motor is started and Y connection is adopted during operation.

Operating conditions
  • -15°C~+40°C
    Ambient air temperature
  • ≤90% (At25°C)
    Monthly average maximum relative humidity of ambient air
  • ≤1KM
    Altitude
  • ModelPolesRated PowerCurrentRated SpeedProtection DegreeInsulation ClassDutyConnectionFrequencyRated Voltage
    kWAr/minHzV
    FQ112M0-441.8 4.1 1450IP54FS1Y50380
    FQ112M1-442.2 5.0 1390IP54FS1Y50380
    FQ112M2-442.6 5.9 1380IP54FS1Y50380
    FQ112M3-442.7 6.1 1380IP54FS1Y50380
    FQ112M4-442.8 6.3 1380IP54FS1Y50380
    FQ132M0-443.0 6.9 1430IP54FS1Y50380
    FQ132M1-443.5 8.0 1425IP54FS1Y50380
    FQ132M2-443.7 8.5 1430IP54FS1Y50380
    FQ132M3-444.0 9.2 1430IP54FS1Y50380
    FQ132L1-444.5 9.8 1420IP54FS1Y50380
    FQ132L2-445.0 10.9 1420IP54FS1Y50380
    FQ132L3-445.5 11.8 1415IP54FS1Y50380
    FQ132L4-446.5 13.9 1415IP54FS1Y50380
    FQ132L5-447.5 17.1 1400IP54FS1Y50380
    FQ160L1-666.5 14.4 965IP54FS1Y50380
    FQ160L2-667.5 16.6 965IP54FS1Y50380
