20211027/8cb05e9f37526f2e9780554eb44310b2.jpg

Technical characteristics

Frame Range	H90~355	Power Range	1.5~375kW
Rated Voltage	380V	Rated Speed	3000、1500、1000、750
Efficiency Level	1級能效	Protection Degree	IP55
Cooling Mode	IC411、IC416	Insulation Class	F
Operation Mode	S1	Installation Mode	B3、B5、B35、B14、B34、V1
Wiring Mode	Y

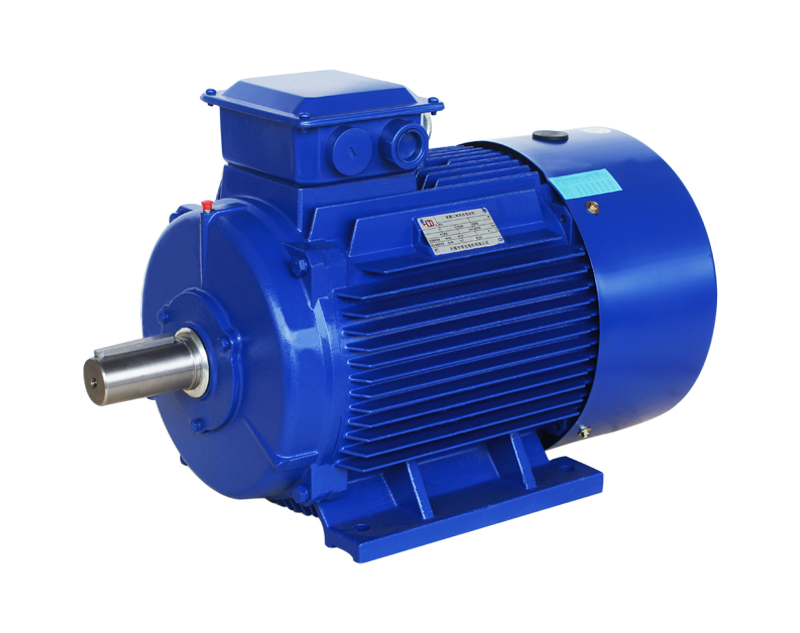

Asynchronous starting three-phase permanent magnet synchronous motor

This series of motor is a kind of motor with squirrel cage winding placed on the rotor. It can start automatically at power frequency without frequency converter. It has high efficiency, obvious energy-saving effect, constant speed and can operate at synchronous speed. Based on the fact that rare earth permanent magnet motor does not need reactive excitation current, it can significantly improve the power factor to the limit value (1.0); It can meet the requirements of various load conditions and has obvious energy-saving effect.

Operating conditions

-15°C~+40°C

Ambient air temperature

≤90% (At25°C)

Monthly average maximum relative humidity of ambient air

≤1KM

Altitude

Model	Rated Frequency	Rated Voltage	Rated Frequency	Insulation Class	Poles	Rated Speed	Efficiency	Frame Size	Weight	Overall Dimensions(mm)
Model	kW	V	Hz	Insulation Class	Poles	r/min	η	Frame Size	kg	Long	Wide	High
XYTZ90L15P4-1.5	1.5	380	50	F	4	1500	88.1	90	24	385	190	265
XYTZ132S10P6-3	3	380	50	F	6	1000	91.5	132	60	510	275	365
XYTZ132M7.5P8-7.5	7.5	380	50	F	8	750	93.2	132	81	560	275	365
XYTZ160M30P2-15	15	380	50	F	2	3000	93.4	160	117	670	320	440
XYTZ100L30P2-3	3	380	50	F	2	3000	89.7	100	33	435	215	290
XYTZ112M30P2-4	4	380	50	F	2	3000	90.3	112	40	470	240	325
XYTZ112M30P2-5.5	5.5	380	50	F	2	3000	91.5	112	59	470	240	325
XYTZ132S30P2-5.5	5.5	380	50	F	2	3000	91.5	132	59	510	275	365
XYTZ132S30P2-7.5	7.5	380	50	F	2	3000	92.1	132	76	510	275	365
XYTZ160M30P2-11	11	380	50	F	2	3000	93	160	107	670	320	440
XYTZ160L30P2-18.5	18.5	380	50	F	2	3000	93.8	160	134	700	320	440
XYTZ90L15P4-2.2	2.2	380	50	F	4	1500	89.7	90	26	385	190	265
XYTZ90L15P4-3	3	380	50	F	4	1500	90.3	90	28	385	190	265
XYTZ100L15P4-2.2	2.2	380	50	F	4	1500	89.7	100	34	435	215	290
XYTZ100L15P4-3	3	380	50	F	4	1500	90.3	100	38	435	215	290
XYTZ100L15P4-4	4	380	50	F	4	1500	90.9	100	41	435	215	290
XYTZ112M15P4-4	4	380	50	F	4	1500	90.9	112	44	470	240	325
XYTZ112M15P4-5.5	5.5	380	50	F	4	1500	92.1	112	48	470	240	325
XYTZ132S15P4-5.5	5.5	380	50	F	4	1500	92.1	132	61	510	275	365
XYTZ132S15P4GW-5.5	5.5	380	50	F	4	1500	92.1	132	63	510	275	365
XYTZ132M15P4-7.5	7.5	380	50	F	4	1500	92.6	132	73	560	275	365
XYTZ132M15P4H-7.5	7.5	380	50	F	4	1500	92.6	132	75	560	275	365
XYTZ132M15P4GW-7.5	7.5	380	50	F	4	1500	92.6	132	78	560	275	365
XYTZ132M15P4-11	11	380	50	F	4	1500	93.6	132	81	560	275	365
XYTZ160M15P4-11	11	380	50	F	4	1500	93.6	160	100	670	320	440
XYTZ160L15P4-15	15	380	50	F	4	1500	94	160	133	700	320	440
XYTZ160M15P4GW-11	11	380	50	F	4	1500	93.6	160	102	670	320	440
XYTZ160L15P4GW-15	15	380	50	F	4	1500	94	160	135	700	320	440
XYTZ160L15P4-18.5	18.5	380	50	F	4	1500	94.3	160	145	700	320	440
XYTZ160L15P4-22	22	380	50	F	4	1500	94.7	160	155	700	320	440
XYTZ132M10P6-4	4	380	50	F	6	1000	92.4	132	65	560	275	365
XYTZ132M10P6-5.5	5.5	380	50	F	6	1000	93.1	132	71	560	275	365
XYTZ132M10P6-7.5	7.5	380	50	F	6	1000	93.7	132	82	560	275	365
XYTZ160M10P6-7.5	7.5	380	50	F	6	1000	93.7	160	113	670	320	440
XYTZ160L10P6-11	11	380	50	F	6	1000	94.3	160	118	700	320	440
XYTZ160L10P6-15	15	380	50	F	6	1000	94.7	160	125	700	320	440
XYTZ112M7.5P8-2.2	2.2	380	50	F	8	750	90	112	47	470	240	325
XYTZ132S7.5P8-2.2	2.2	380	50	F	8	750	90	132	59	510	275	365
XYTZ132M7.5P8-3	3	380	50	F	8	750	91	132	66	560	275	365
XYTZ132M7.5P8-4	4	380	50	F	8	750	91.8	132	73	560	275	365
XYTZ132M7.5P8-5.5	5.5	380	50	F	8	750	92.6	132	78	560	275	365
XYTZ160M7.5P8-4	4	380	50	F	8	750	91.8	160	104	670	320	440
XYTZ160M7.5P8-5.5	5.5	380	50	F	8	750	92.6	160	113	670	320	440
XYTZ160M7.5P8-7.5	7.5	380	50	F	8	750	93.2	160	128	670	320	440
XYTZ160L7.5P8-11	11	380	50	F	8	750	93.7	160	142	700	320	440
XYTZ180L10P6-15	15	380	50	F	6	1000	94.7	180	171	780	380	470
XYTZ200L15P4-30	30	380	50	F	4	1500	95	200	232	780	410	525
XYTZ225M7.5P8-22	22	380	50	F	8	750	94.9	225	295	845	470	580
XYTZ280S10P6-45	45	380	50	F	6	1000	96	280	465	985	580	698
XYTZ355X30P2-375	375	380	50	F	2	3000	96.5	355	2340	1550	720	1065
XYTZ315S30P2-110	110	380	50	F	2	3000	96	315	920	1230	645	885
XYTZ315M30P2-132	132	380	50	F	2	3000	96	315	970	1340	645	885
XYTZ315L30P2-160	160	380	50	F	2	3000	96.2	315	1080	1340	645	885
XYTZ315L30P2-200	200	380	50	F	2	3000	96.3	315	1170	1340	645	885
XYTZ355M30P2-250	250	380	50	F	2	3000	96.4	355	1690	1550	720	1065
XYTZ355L30P2-315	315	380	50	F	2	3000	96.5	355	1850	1550	720	1065
XYTZ355X30P2-355	355	380	50	F	2	3000	96.5	355	2050	1550	720	1065
XYTZ180M15P4-15	15	380	50	F	4	1500	94	180	150	740	380	470
XYTZ180M15P4GW-15	15	380	50	F	4	1500	94	180	150	740	380	470
XYTZ180M15P4-18.5	18.5	380	50	F	4	1500	94.3	180	167	740	380	470
XYTZ180M15P4GW-18.5	18.5	380	50	F	4	1500	94.3	180	167	740	380	470
XYTZ180L15P4-22	22	380	50	F	4	1500	94.7	180	181	780	380	470
XYTZ180L15P4GW-22	22	380	50	F	4	1500	94.7	180	181	780	380	470
XYTZ180L15P4-30	30	380	50	F	4	1500	95	180	190	780	380	470
XYTZ225S15P4-37	37	380	50	F	4	1500	95.3	225	330	820	470	580
XYTZ225M15P4-45	45	380	50	F	4	1500	95.6	225	350	845	470	580
XYTZ225M15P4-55	55	380	50	F	4	1500	95.8	225	360	845	470	580
XYTZ250M15P4-55	55	380	50	F	4	1500	95.8	250	381	915	490	635
XYTZ280S15P4-75	75	380	50	F	4	1500	96	280	510	985	580	698
XYTZ280M15P4-90	90	380	50	F	4	1500	96.2	280	600	1035	580	698
XYTZ315S15P4-110	110	380	50	F	4	1500	96.4	315	921	1230	645	885
XYTZ315M15P4-132	132	380	50	F	4	1500	96.5	315	1002	1340	645	885
XYTZ315L15P4-160	160	380	50	F	4	1500	96.5	315	1070	1340	645	885
XYTZ315L15P4-200	200	380	50	F	4	1500	96.6	315	1181	1340	645	885
XYTZ355M15P4-250	250	380	50	F	4	1500	96.7	355	1720	1550	720	1065
XYTZ355L15P4-280	280	380	50	F	4	1500	96.7	355	1850	1550	720	1065
XYTZ355L15P4-315	315	380	50	F	4	1500	96.8	355	1950	1550	720	1065
XYTZ355X15P4-355	355	380	50	F	4	1500	96.8	355	2160	1550	720	1065
XYTZ355X15P4-375	375	380	50	F	4	1500	96.8	355	2350	1550	720	1065
XYTZ180L10P6-18.5	18.5	380	50	F	6	1000	95.1	180	181	780	380	470
XYTZ180L10P6-22	22	380	50	F	6	1000	95.4	180	195	780	380	470
XYTZ180L10P6-30	30	380	50	F	6	1000	95.7	180	205	780	380	470
XYTZ200L10P6-18.5	18.5	380	50	F	6	1000	95.1	200	216	780	410	525
XYTZ200L10P6-22	22	380	50	F	6	1000	95.4	200	225	780	410	525
XYTZ225M10P6-30	30	380	50	F	6	1000	95.7	225	292	845	470	580
XYTZ250M10P6-37	37	380	50	F	6	1000	95.9	250	408	915	490	635
XYTZ280M10P6-55	55	380	50	F	6	1000	96.1	280	540	1035	580	698
XYTZ315S10P6-75	75	380	50	F	6	1000	96.2	315	861	1230	645	885
XYTZ315M10P6-90	90	380	50	F	6	1000	96.2	315	940	1340	645	885
XYTZ315L10P6-110	110	380	50	F	6	1000	96.3	315	1110	1340	645	885
XYTZ315L10P6-132	132	380	50	F	6	1000	96.3	315	1175	1340	645	885
XYTZ355M10P6-160	160	380	50	F	6	1000	96.3	355	1690	1550	720	1065
XYTZ355M10P6-180	180	380	50	F	6	1000	96.4	355	1770	1550	720	1065
XYTZ355M10P6-200	200	380	50	F	6	1000	96.4	355	1870	1550	720	1065
XYTZ355L10P6-225	225	380	50	F	6	1000	96.4	355	1900	1550	720	1065
XYTZ355L10P6-250	250	380	50	F	6	1000	96.4	355	1980	1550	720	1065
XYTZ355X10P6-315	315	380	50	F	6	1000	96.4	355	2090	1550	720	1065
XYTZ180L7.5P8-11	11	380	50	F	8	750	93.7	180	178	780	380	470
XYTZ180L7.5P8-15	15	380	50	F	8	750	94.2	180	191	780	380	470
XYTZ200L7.5P8-15	15	380	50	F	8	750	94.2	200	227	780	410	525
XYTZ200L7.5P8-18.5	18.5	380	50	F	8	750	94.6	200	237	780	410	525
XYTZ225S7.5P8-18.5	18.5	380	50	F	8	750	94.6	225	266	820	470	580
XYTZ225M7.5P8-30	30	380	50	F	8	750	95.1	225	316	845	470	580
XYTZ250M7.5P8-30	30	380	50	F	8	750	95.1	250	387	915	490	635
XYTZ250M7.5P8-37	37	380	50	F	8	750	95.3	250	426	915	490	635
XYTZ280S7.5P8-37	37	380	50	F	8	750	95.3	280	520	985	580	698
XYTZ280M7.5P8-45	45	380	50	F	8	750	95.5	280	575	1035	580	698
XYTZ280M7.5P8-55	55	380	50	F	8	750	95.6	280	606	1035	580	698
XYTZ315S7.5P8-55	55	380	50	F	8	750	95.6	315	829	1230	645	885
XYTZ315S7.5P8-75	75	380	50	F	8	750	95.7	315	929	1230	645	885
XYTZ315M7.5P8-75	75	380	50	F	8	750	95.7	315	980	1340	645	885
XYTZ315M7.5P8-90	90	380	50	F	8	750	95.7	315	1003	1340	645	885
XYTZ315L7.5P8-90	90	380	50	F	8	750	95.7	315	1003	1340	645	885
XYTZ315L7.5P8-110	110	380	50	F	8	750	95.7	315	1070	1340	645	885
XYTZ315L7.5P8-132	132	380	50	F	8	750	95.8	315	1190	1340	645	885
