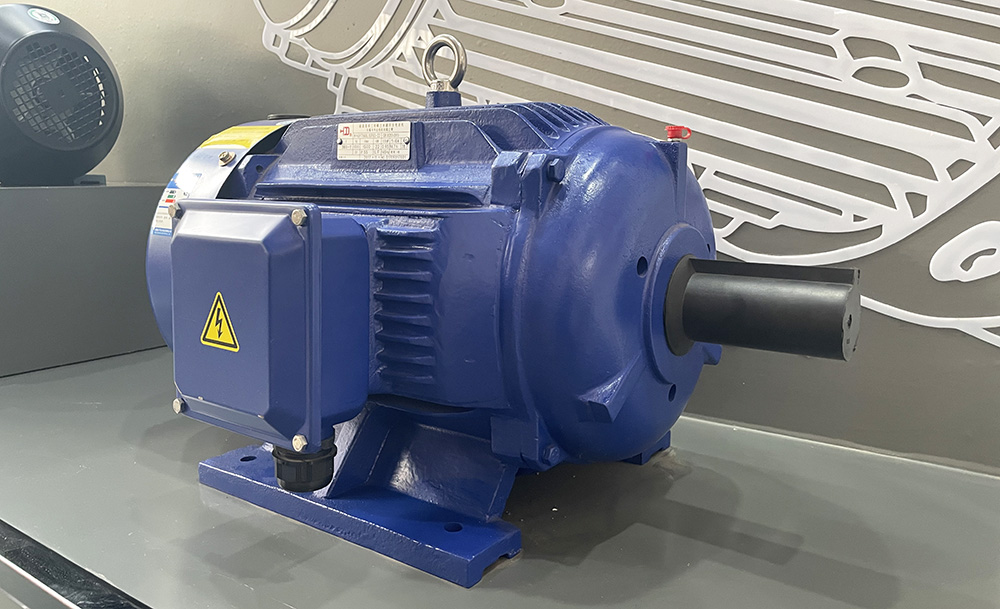

Permanent magnet synchronous motor is an efficient and low noise motor widely used in electric vehicles, wind power generation, industrial automation, etc. For the installation of permanent magnet synchronous motors, we need to follow certain steps. Below, we will provide a detailed introduction to the steps and precautions for installing permanent magnet synchronous motors.
1、 Preparation before installation
Check the supporting equipment of the permanent magnet synchronous motor, such as the frame, frame bottom bolts, gearbox, etc.
Check the electromechanical connectors of the permanent magnet synchronous motor to ensure that all accessories and connectors meet the specification requirements.
Check the transportation of permanent magnet synchronous motors and their supporting equipment for any damage or deformation.
2、 Installation of permanent magnet synchronous motor and its supporting equipment
Install the seat: Place the seat on the installation foundation and secure it with the seat bottom bolts. Ensure that the seat is installed flat and on the same horizontal plane.
Installation of gearbox: Install the gearbox on the seat and fix it with the matching bolts and pins between the gearbox and the seat.
Installation of permanent magnet synchronous motor: Install the permanent magnet synchronous motor on the gearbox and fit the motor shaft with the input shaft of the reducer.
Install the electromechanical control part: The electromechanical control part is installed on the seat and connected to the electrical control through corresponding cables.
3、 Precautions
The standard installation position for permanent magnet synchronous motors should be horizontal to reduce unnecessary vibration effects.
During the installation process, attention should be paid to the protection of the motor to avoid damage such as collision and wear.
When installing the gearbox, attention should be paid to the matching between the gearbox and the permanent magnet synchronous motor to ensure consistency between speed and transmission efficiency.
When installing seats and gearboxes based on the installation position and angle of permanent magnet synchronous motors, they should be strictly installed in accordance with the manufacturer's requirements to ensure that they are on the same horizontal plane.
During the installation of permanent magnet synchronous motors, attention should be paid to tightening the connecting bolts to avoid falling off or loosening during operation.
Generally speaking, the installation of permanent magnet synchronous motors requires following certain steps and precautions to ensure the normal operation and service life of the motor. Check relevant equipment before installation to ensure compliance with installation requirements. During the installation process, care should be taken to avoid damaging the motor and related equipment. Only through correct installation and standardization can the better performance of permanent magnet synchronous motors be achieved, ensuring the normal operation of the machine.
